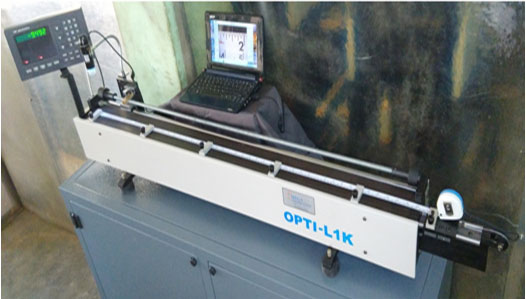

TAPE/STEEL SCALE CALIBRATOR
- Steel Casting body
- Carriage movement combination of Linear Guide ways and LM Guide ways
- Digital Read Out with linear scales of 0.001mm or 0.0005mm (optional) with non-linear compensation
- USB variable zoom microscope with PC interface software
- Counter weight for stretch
- Movement by lead screw with rapid release and fine movement facility
- Repeatability within 06 Microns for length of 1000mm
- Accuracy within +/-6 Microns for length of 1000mm
Specifications
Note* Due to continuous development specifications and images are liable to change without prior notice.
